Minibus series

Overview

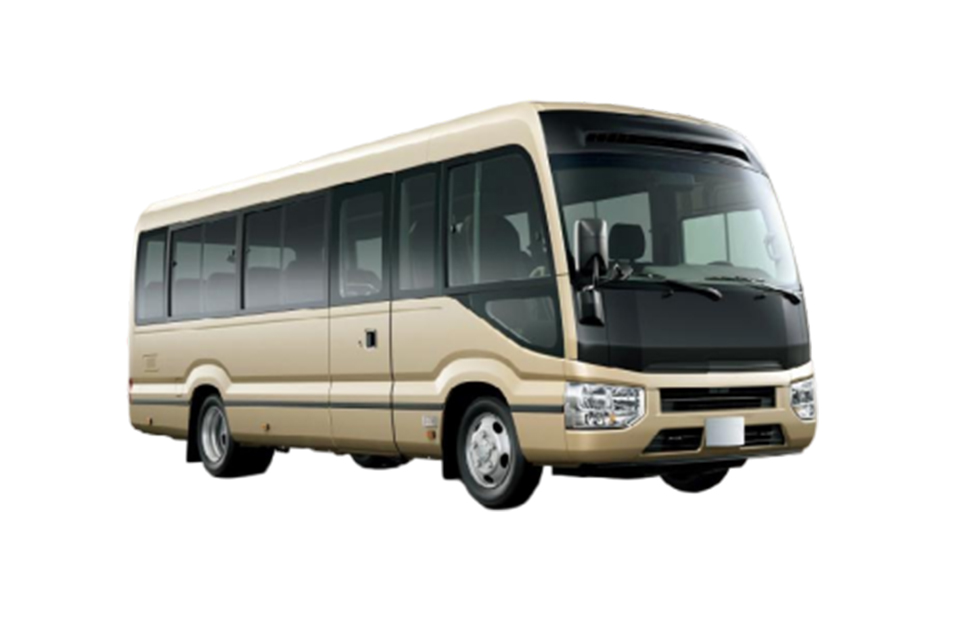

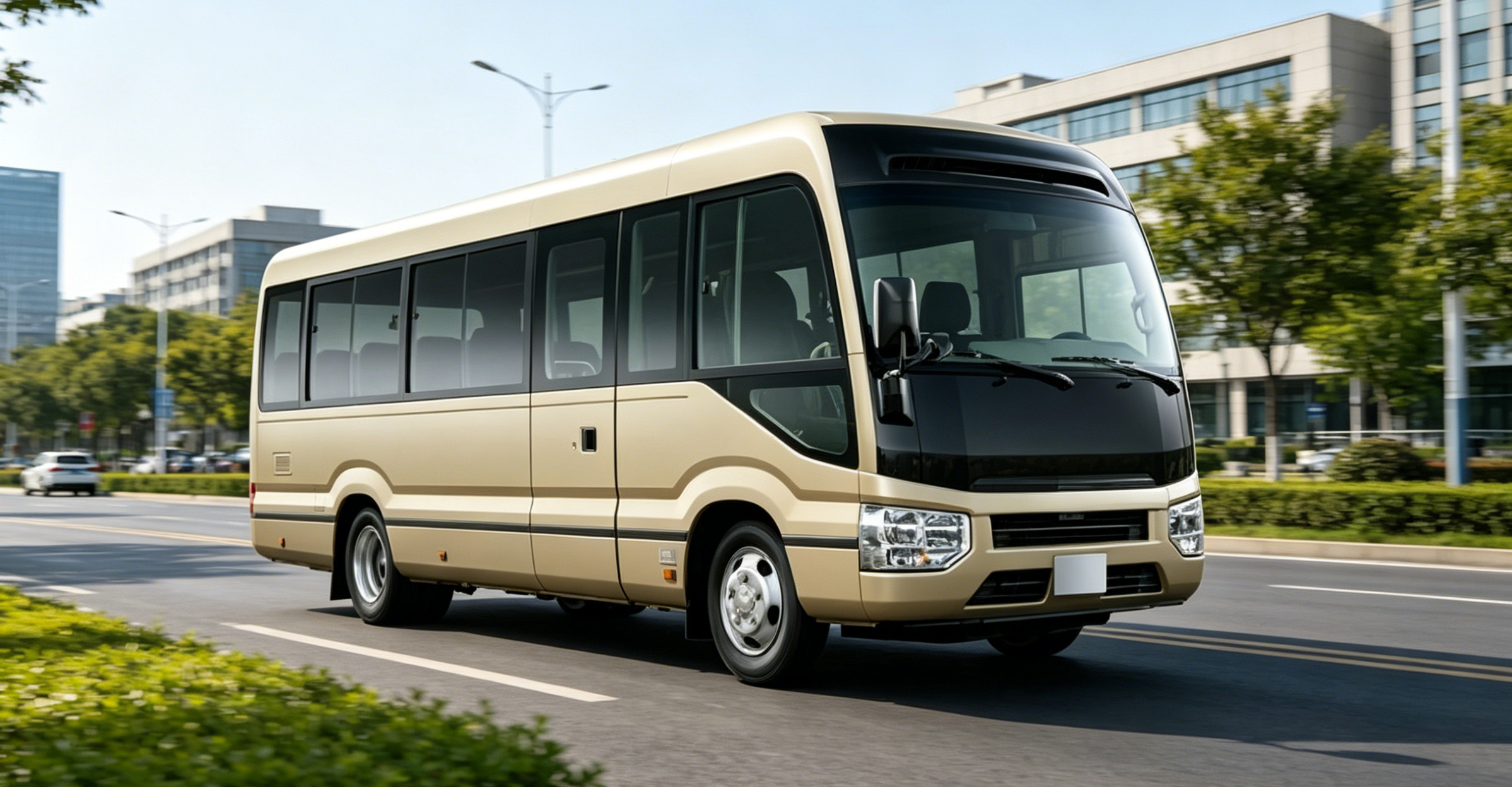

6-8 meter pure electric medium-sized bus

Vehicle features: Built against the Japanese model of the Coaster, it fully inherits the customer experience, comfortable handling, and high-quality attributes of the prototype car, and has undergone electrification upgrades. It is aimed at the global market and is suitable for areas with urgent electrification needs such as passenger transportation, public transportation, tourism, and leasing; Promote the popularization and application of electrification in China and Pakistan globally at the same price as oil and electricity.


Performance


Configuration
立米汽车制造(威海)有限公司
Limi Automobile Manufacturing (Weihai) Co., Ltd.
COMPLETE VEHICLE SPECIFICATION
整车参数长(mm)Length8200


宽(mm)Width2280
高(mm)Height2950
轴距(mm)Wheelbase4260
前悬/后悬(mm)Front/Rear overhang1820/2120
接近角/离去角(°)Angle of approach/Departure18度/10度
整备质量(Kg)Curb weight6985
最大总质量(Kg)Maximum total mass12500
轴荷(Kg)Axle load5500/7500
座位数Seat30+1
最高车速(Km/h)Maximum speed80-100
最大爬坡度Maximum gradability≥20%
最小离地间隙(mm)Minimum ground clearance≥180
最小转弯直径(m)Minimum turning radius≤21
续航里程(Km)Cruise mileage≤280

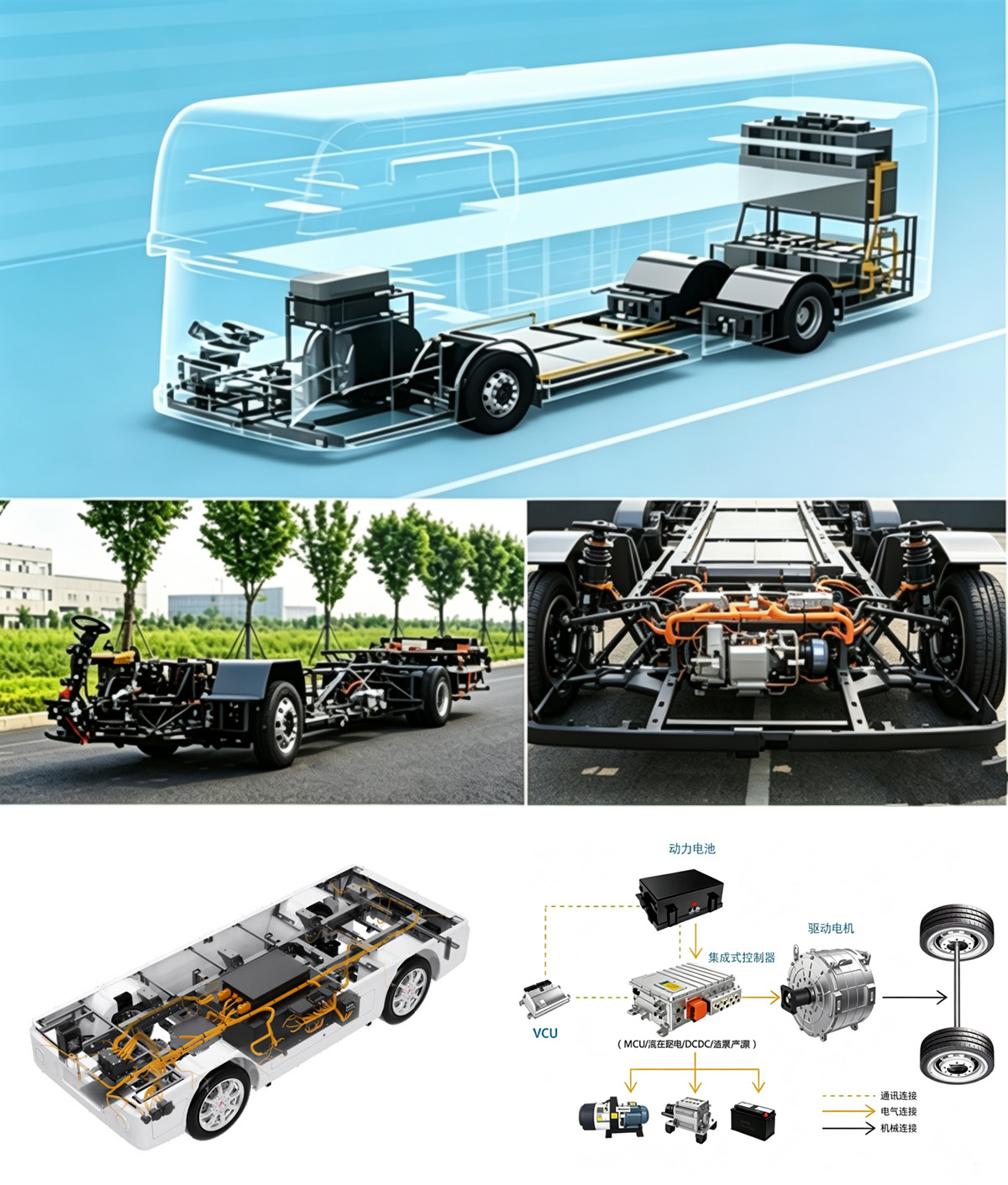

CHASSIS SPECIFICATION
类型系统Items规格型号SpecificationRemarks
底盘配置驱动电机Motor80kw/160kw、1700N.m160kw、1700N.m
前桥Front axle5.5T、鼓式5.5T、drum type
后桥Rear axle7.5T、鼓式 双轮胎7.5T、drum type   Dual tires
悬架系统Suspension前3后4钢板弹簧Front 2rear 2 air suspension
轮胎Tyre215/75R17.5、14PR215/75R17.5、14PR
胎压监测TPMSYES
转向系统Steering system电动助力转向Electric power steering
方向盘Steering wheelφ450、四幅φ450
制动系统Braking system双回路气制动,前盘后鼓Dual circuit air brake, front disc and rear drum
ABSABSABSABS
冷却系统Cooling system水冷Water cooling
膨胀水箱Expansion water tankYES
集中润滑系统Auto greasing YES
随车工具Tool kitYES
BODY SPECIFICATION
车身配置驾驶方向Drive mode左舵/右舵可选LHD/RHD  optional
前挡玻璃Front windshield夹胶玻璃Laminated glass
后挡玻璃Rear windshield钢化玻璃Hardened glass
侧窗玻璃Side window内嵌推拉窗Inner sliding window
顶窗和换气扇Roof hatch1个带换气扇的安全顶窗1 hatch with ventilation fan
乘客门Passenger door中折叠门 Folding door
侧舱门Side cabin door冲压侧舱门Stamping side hatch
尾舱门Rear cabin door冲压尾舱门Stamping tail hatch door
后视镜Rearview mirror铁杆式Rack type
地板Floor冲压型材加衬板Stamped profiles with backing plates
地板革Floor cover防滑地板革Anti-slip leather
司机椅Driver's seat手动调节, 带三点安全带Manually Adjustable, with three-point belt
乘客座椅Passenger seat30只旅游座椅(30+1)30+1 tourist seats
遮阳帘Driver's Sunshield司机前、侧Front and side
仪表台InstrumentsPU硬发泡+PVC革PU Foaming+PVC leather
风道AC vent发泡覆皮Foaming+PVC leahter
内饰Interior trimmingABS吸塑成型内饰ABS molding
防护栏Protection barYes
台阶踏步灯Stair lightYes
车内灭火器Extinguisher2个4Kg2*4kg
消防安全锤Safety hammer4个4
油漆Paint普通漆Solid color paint
其他Others如有特殊要求,请列明please specify if any
ELECTRICAL SPECIFICATION
电气配置电池组(磷酸铁锂)Battery pack (lithium iron phosphate)101KWH,续航≤250KM101KWH, Range ≤230KM
可选Optional
141KWH,续航≤350KM141KWH, Range  ≤320KM可选Optional
174KWH,续航≤430KM174KWH,Range   ≤400KM
高压控制柜PDUCATLCATL
整车控制器VCUYes
空调A/C顶置单冷空调,14000kcalRoof mounted, only cooling, 14000Kcal/h
蓄电池Battery100Ah*2100Ah*2
雨刮器Wiper普通雨刮single motor, double blades
仪表 Instruments三级总线CAN system
行车记录仪Tachograph预留线束,可加装keep the wiring
电子钟Digital clock有,内视镜一体式Yes, with interior mirror
高位刹车灯Height brake lightYes
视听系统Audiovisual systemMp5 播放器MP5 displayer
高压舱灭火器Fire extinguisher for HV cabinYesYes
电动除霜器Electric defrosterYes
前门遥控门锁Door remote controllerYes
倒车雷达Reverse RadarYes
车载WIFIWIFI选装Optional
喇叭Horn电喇叭Electric horn
充电口Charging receptacle1个,中国国标1 unit.Chinese National Standard
GPS导航
选装Optional
说明Explanation鉴于客车车型具体的配置、布置需要与用户沟通,按客户的要求实现,本车型的配置为基本配置,具体按与客户沟通确定的为准。
Given that the specific configuration and layout of the passenger vehicle model require communication with the customer and
 are to be implemented according to customer requirements, the configuration of this model is a basic configuration, with the
final details to be determined through communication and agreement with the customer.
车型配置、续航、造型即车内布局可定制
Vehicle configuration, range, styling, and interior layout can be customized.
质保
Warranty
整车Complete vehicle2年或10万公里2 years or 100,000 kilometers
电池质保Battery Warranty5年或300000公里5 years or 300,000 kilometers
电机、电控Motor, electronic control5年或200000公里5 years or 200,000 kilometers
车型报价
Vehicle
 model price quote
FOB青岛港FOB
Qingdao Port
174kwh电池包人民币:510000元实际续航≤340/匀速续航≤400
141kwh电池包人民币:485000元实际续航≤280/匀速续航≤320
101kwh电池包人民币:455000元实际续航≤200/匀速续航≤230
价格说明
Price Description
车型价格以客户最终要求的配置的实际价格为主
The vehicle price is primarily based on the actual price of the final configuration requested by the customer.
